TDM & I2S Protocol Validation Suite

TDM & I2S Protocol Validation Suite

DATA SHEET
Download Datasheet - TDM & I2S Protocol Validation Suite Specifications

Product Overview

  • Overview
  • Functional Coverages
  • Parametric Coverage
  • Features
  • FAQ
Overview

Time-Division Multiplexing (TDM) is a communication protocol that allows multiple signals to share a single channel by assigning each signal a unique time slot within a fixed sequence. TDM’s ability to efficiently divide and allocate time slots for various data streams makes it a valuable technique in scenarios where multiple signals need to be transmitted over a shared channel without interference.

I2S (Inter-IC Sound) is a serial communication protocol designed for transferring digital audio data between integrated circuits. I2S is used for its high-quality audio transmission, precise synchronization, efficient data transfer, and compatibility in various devices, making it a preferred choice for digital audio communication.

As a part of product validation, it’s important to validate the product’s conformance against the protocol specification to ensure the interoperability of the product. As the complexity of the protocol and product increases, validation time of the protocol interfaces also increases which in turn reduces the RTM. Performing the protocol conformance testing in traditional way needs lot of time and effort.

Soliton’s TDM & I2S Validation Suite is an off the shelf validation tool using NI’s PXI Platform, which helps to validate the devices’ compliance with timing and electrical specifications of the TDM & I2S protocol. Users have claimed that, using this automated solution for TDM & I2S Validation has brought down the test time/ validation time from few weeks to a couple of days.

Functional Coverages
Based on Device Clock Type
  • Slave Transmitter (External Clock)
  • Master Transmitter (Internal Clock)
  • Slave Receiver (External Clock)
  • Master Receiver (Internal Clock)*
Based on Number of Lines
  • TDM Protocol – 3 Wire (FSYNC, BCLK, DOUT)
  • I2S Protocol – 4 Wire (FSYNC, BCLK, SOUT0, SOUT1)
 PROTOCOL FEATURES
  • FSYNC Polarity Selection
  • FSYNC Offset, Length, Duty Cycle Configurability
  • Configurability for Number of Slots/Channels per Frame
  • Configurability for Number of BCLKs per Slots/Channels
  • Continuous Capture Mode and Single Command capture Mode
  • MSB – LSB Bit Ordering
  • TDM read with different data rates up to 2.5 Kbps
Parametric Coverage
Timing Validation​
  • BCLK Frequency
  • FSYNC Frequency
  • FSYNC Setup
  • FSYNC Hold
  • BCLK Low
  • BCLK High
  • DOUT Setup
  • DOUT Hold
  • trFSYNC – FSYNC signal Rise time
  • tfFSYNC – FSYNC signal Fall time
  • trBCLK – BCLK signal Rise time
  • tfBCLK – BCLK signal Fall time
  • trDOUT- DOUT signal Rise time
  • tfDOUT – DOUT signal Fall time
  • trSOUT- SOUT signal Rise time
  • tfSOUT – SOUT signal Fall time
Electrical IO Validation
  • VIL – Low-Level Input Voltage
  • VIH – High-Level Input Voltage
  • Vhys – Schmitt Trigger Inputs Hysteresis
  • VOL – Output Low Level
  • VOH – Output High Level
Features
  • ISO 9001 Certified Product
  • Simple, Flexible, Modular and Light Bench Setup
  • Easy to use TDM & I2S Protocol Exerciser and Debugger to perform various TDM & I2S transactions with controllable timings/voltage levels
  • Protocol compliance testing with zero coding
  • Comprehensive reporting feature to report the test pass/fail reports
  • Generates Full Compliance reports in less than 2 hours
  • Reproduce failure cases in few clicks
  • Easy to build and test custom device specific tests
  • Automation Capability (DLLs/APIs) from external programming environment/automation frameworks like LabVIEW, C#, Python, TestStand, etc
  • Leverage Soliton’s experience in protocol validation and debugging
FAQ
What kind of engagement models are offered for TDM & I2S Validation

We offer 2 engagement models. In the First mode, user can purchase a license of TDM & I2S Validation Suite and do the validation in-house. In the second mode, user can send us 3 DUT's, we will do the validation and send the test reports in 3 working days

How is this product different from existing Protocol Exercisers, Debugger or Analyzers?

This product is mainly used for performing functional and electrical compliance validation of the TDM & I2S devices (post silicon validation) whereas the other existing protocol exercisers, debuggers or analyzers are used for performing basic functional tests during the device bring up

Can't I build a home-grown solution instead?

While this is certainly an option, we expect that it will take a highly experienced automation engineer between 3-6 months to create a first version of a similar tool. To create a robust and flexible tool takes experience, and we have been improving this tool over the last 3 years since release. We believe it is worth the cost to skip the learning curve and avail our comprehensive report or validation suite.

What else can I do with NI's PXI chassis/modules?​

The PXIe-657x module is a general-purpose programmable pattern generator and acquisition device with deep memory. It can be used for other protocol validation tools from us. Also, it can be programmed using LabVIEW or other programming languages to emulate any synchronous digital protocol. NI’s PXI chassis supports high bandwidth and synchronization-friendly control and reads back from a huge variety of digital, analog, and special-purpose modules in a compact form factor.​

What is the interposer board referenced in the system diagram?​

The Protocol Validation Suite requires custom external circuitry for signal conditioning. Each purchase comes with a complimentary interposer board, which is a separate PCB designed and delivered by us. ​

Which oscilloscope models are supported?​

The Protocol Validation Suite supports any NI scope by default. The tool has a flexible architecture that allows the support of other oscilloscope models. We can help you in building the oscilloscope plugin for one of your oscilloscopes​

What type of documentation and training will be available for each solution?

User manuals, Getting started guides, and tutorial videos are available for each solution and can be easily accessed from within the product. Additionally, we will provide short live training sessions upon request. ​

Whether the tool can be used for validation out of box?

Yes, The tool comes with out of box test scripts which can be used for validation after entering the device-specific details​

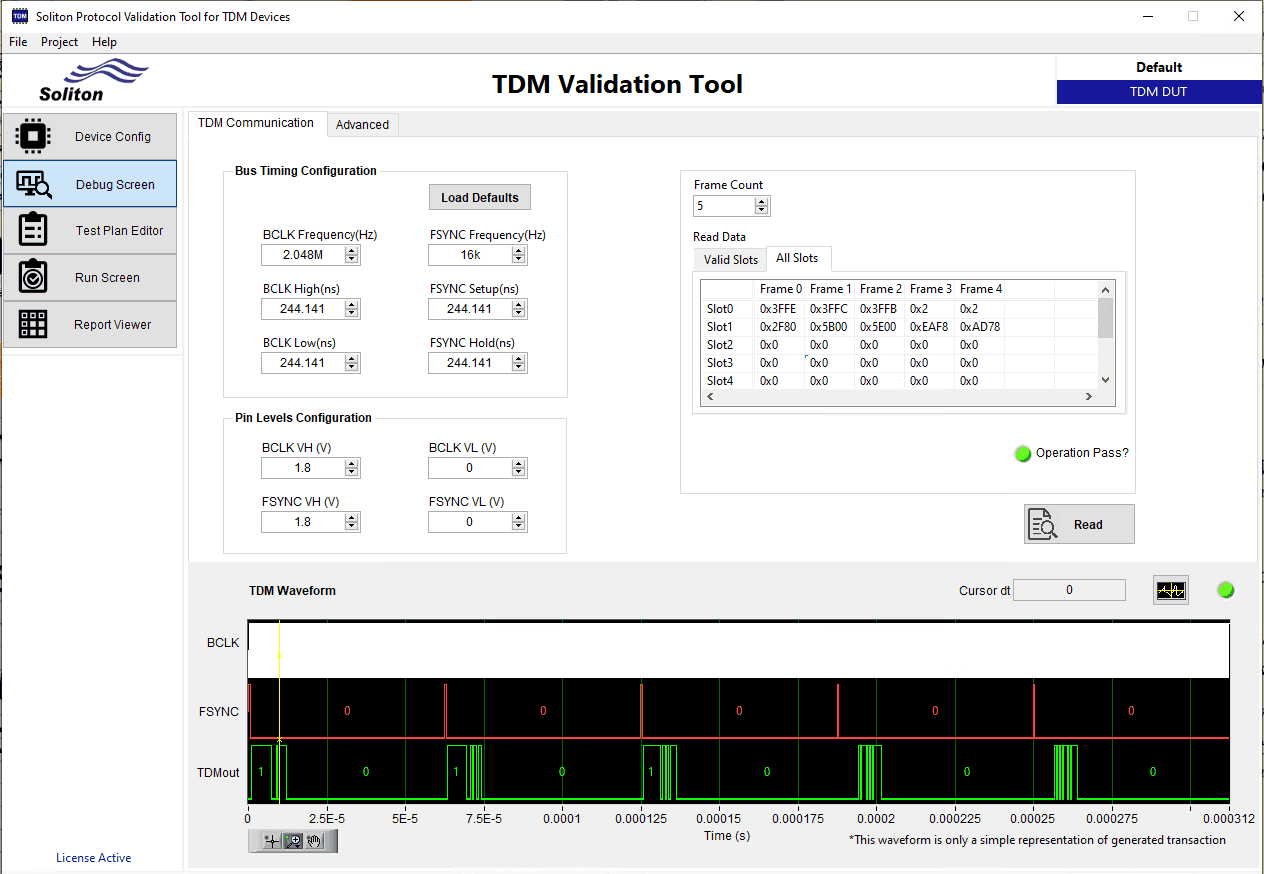

Peek and Poke GUI for interactive debug of the TDM & I2S interface. This helps to exercising and debugging the TDM & I2S communication manually. User can configure any allowed timing/voltage parameters to debug the transactions.
Automated Test Screen which is used to execute the test created and generate the compliance report
Report Viewer Screen to visualize and debug the test reports generated by the tool after executing the validation tests

Technical Documentation

Soliton’s TDM & I2S Validation Suite is an off the shelf validation tool using NI’s PXI Platform, which helps to validate the devices’ compliance with timing and electrical specifications of the TDM & I2S protocol. It contains the below components. ​

  • NI PXIe 657xDigital Pattern Generation Card with the PXIe Chassis setup
  • Soliton PVS Interposer Board
  • Oscilloscope – For performing voltage measurements
  • Soliton TDM & I2S Validation Suite Software compatible with Windows OS (Win 10)

architecture of the Soliton TDM & I2S Validation Suite

The high level architecture of the Soliton TDM & I2S Validation Suite based on NI’s PXIe 657x Platform​

For more details, download the datasheet
Download TDM & I2S Protocol Validation Suite - Specifications

Hardware

Soliton’s TDM & I2S Validation suite is based on the NI – PXI Platform and the below NI part configuration lists the hardware required to perform the validation

The solution also needs a custom Interposer Board for signal conditioning purposes.



The DUT can be connected through the Berg Connector​
The DUT can be connected through the Berg Connector​

Support

For any queries, contact us at [email protected]. We will respond within 1 Business day.



USER PERSONA



  • Design Engineers, Test Engineers, Post Silicon Validation Engineers, Engineering Managers, Validation Managers, Lab Managers etc. from the Semiconductor Industry



 TYPICAL USER BASE FOR TDM & I2S VALIDATION SUITE



  • Post Silicon validation of Chips with TDM & I2S interface
  • Semiconductor Chip Manufacturers making TDM & I2S Devices
  • Product Manufactures making products with TDM & I2S interface
  • Audio device Manufacturers who need to test against TDM & I2S specifications.
