The Role of MIPI I3C® Protocol in SSDs:

What Makes It a Preferred Choice?

Solid State Drives (SSDs) have transformed the storage landscape with their superior performance and reliability compared to traditional HDDs. Protocols such as SATA (Serial ATA), PCIe (Peripheral Component Interconnect Express), NVMe (Non-Volatile Memory Express) and SAS (Serial Attached SCSI) aid in high-speed data transmission. While I2C and SPI are not suitable for high-speed data transfer required for primary storage operations in modern SSDs, they are still valuable in monitoring, control, and configuration aspects of SSD management. They provide a means to interact with and retrieve essential information from the SSD’s internal circuitry without the need for complex and power-hungry protocols that are typically used for data-intensive tasks.

As technology progresses, newer SSD models require more advanced protocols to address the demands for higher performance, faster data transfer rates, better power efficiencies and improvement in all aspects to meet the evolving needs of modern computing systems. One such protocol gaining significant traction in this context is MIPI I3C® (Improved Inter-Integrated Circuit) which can be a replacement for traditional interfaces like I2C and SPI. In this article, we explore the advantages of MIPI I3C® adoption in SSDs and how it can enhance performance, power efficiency, and system integration.



FASTER DATA TRANSFER RATES

To ensure high-speed data transfer within SSDs, it is essential for the internal communication, responsible for configurations, bus management, etc. between their components to operate at accelerated speeds. Operating at full speed, I2C protocol is much slower compared to MIPI I3C®. SPI, though can be configured to be faster than MIPI I3C® is space hungry. MIPI I3C® forms the best fit here making the implementation fruitful. MIPI I3C® supports up to four speed modes, each offering progressively higher bandwidth. With its high-speed communication capabilities, MIPI I3C® facilitates faster management and configurations modifications. By harnessing these advantages, SSDs can achieve superior read and write performance, resulting in reduced latency and heightened system responsiveness.

Space Efficient

Portable devices such as laptops and smartphones require SSDs to be compact. This demands a lesser number of physical pins and interconnections. Compared to SPI which requires at least three pins, MIPI I3C® packs a major advantage. By employing MIPI I3C® 's multi-drop bus architecture, it becomes possible to connect multiple devices with fewer physical pins. This reduction in pin count offers the advantage of a more condensed layout, liberating valuable space on the controller for crucial components. As a result, SSD manufacturers can start creating smaller and slimmer devices without compromising on performance or storage capacity.

Power Efficient

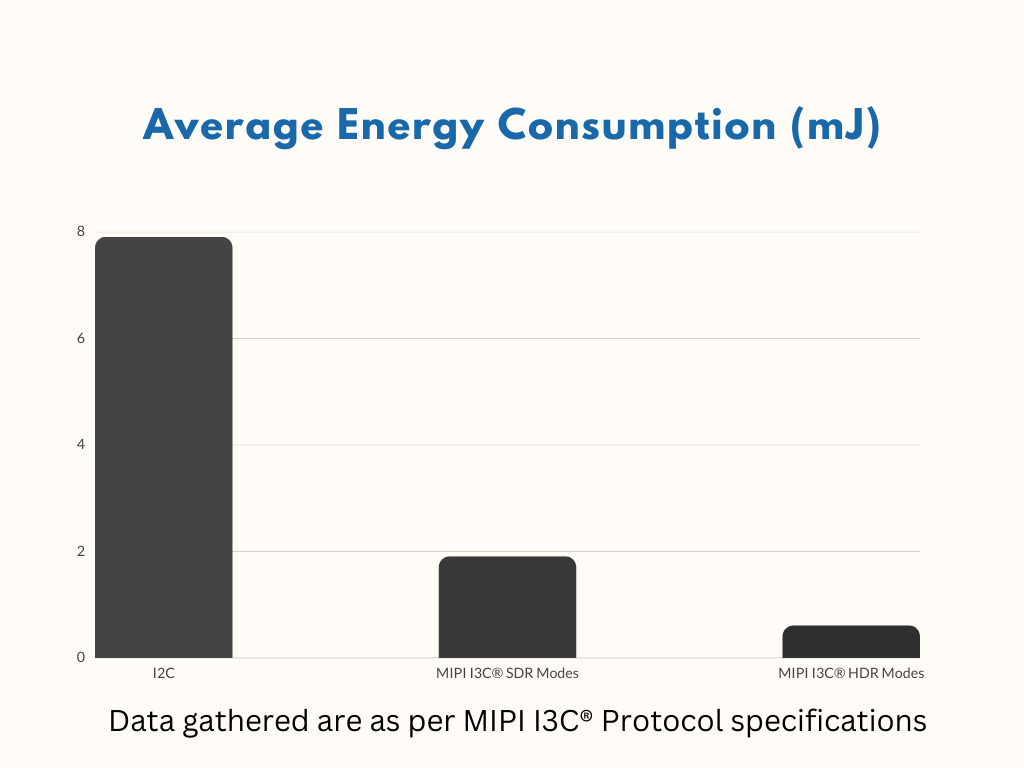

Power consumption is a crucial aspect in modern devices. I2C is considered less power efficient because its open-drain design requires pull-up resistors, which when activated consume a notable amount of power to operate. SPI typically demands higher power consumption because of its necessity for additional Slave Select (SS) lines for each individual slave device. MIPI I3C® incorporates push-pull design and facilitates advanced power management features, including a low-power mode and dynamic voltage scaling. Additionally with features like in-band interrupts and trigger capabilities, MIPI I3C® enables devices to spend more time in sleep or standby modes, thereby reducing overall power consumption. Hence, it can help SSDs optimize power usage balance based on workloads. In portable devices such features help improve energy efficiency and extend battery life. MIPI I3C® can enable SSDs to achieve an optimal blend of performance and power efficiency, thereby improving the overall user experience.

Backward Compatibility

Although MIPI I3C® provides numerous advantages over traditional protocols and contributes to the development of next-generation SSDs, there may be some reluctance from new adaptors regarding its compatibility with existing devices already in the market. So MIPI I3C® offers a significant benefit in terms of backward compatibility with I2C, a commonly utilized interface in SSDs and other storage devices. This compatibility ensures that MIPI I3C® enabled components can be seamlessly integrated into existing SSD designs. Manufacturers can make use of their established I2C infrastructure while gradually transitioning to MIPI I3C®, ensuring smooth compatibility with legacy systems and devices. This backward compatibility can simplify the adoption of MIPI I3C® and promotes its broader implementation throughout the industry.

Uniting Performance and Efficiency for Next-Gen SSDs

MIPI I3C® is architected combining essential features from both SPI and I2C interfaces, resulting in a unified, high performing and low-power consuming protocol. With MIPI I3C® incorporation in SSDs, manufacturers can build next-generation storage devices with enhanced efficiency, speed, and power-saving capabilities. As technology continues to progress and newer applications arise, MIPI I3C® is anticipated to assume a more substantial role in shaping the future of storage solutions. Its implementation can provide both manufacturers and consumers with a compelling and efficient storage interface, further solidifying its position as a key player in the evolution of storage technology.
