Overview

The MIPI System Power Management Interface, MIPI SPMI, specifies the hardware interface between baseband or application processors and peripheral components to support advanced power management techniques. The specification also reduces design costs and shortens the time to market of mobile devices by simplifying the interconnection of devices from different manufacturers. It is used in smartphones, tablets, and other portable devices.

As a part of product validation, it’s important to validate the product’s conformance against the protocol specification to ensure the interoperability of the product. As the complexity of the protocol and product increases, the validation time of the protocol interfaces also increases which in turn reduces the RTM. Performing the protocol conformance testing in the traditional way needs a lot of time and effort.

Soliton’s SPMI Validation Suite is an off-the-shelf validation tool using NI’s PXI platform, which helps to validate the devices’ compliance with the timing and electrical specifications of the MIPI SPMI protocol. The tool can also validate the tolerance of the device to and recovery from a variety of SPMI faults & exceptions and provides a comprehensive set of reports. Users have claimed that using this automated solution for SPMI Validation has brought down the test time/ validation time from few weeks to a couple of days.

Functional Coverage ​
MODES
  • Low-Speed Mode (15MHz)
  • High-Speed Mode(26MHz)
FUNCTIONAL TESTS
  • Register 0 Write
  • Register Write
  • Register Read
  • Extended Register Write
  • Extended Register Read
  • Extended Register Write Long
  • Extended Register Read Long
  • Reset/Sleep Command
  • Shutdown/Wakeup Command
  • Authenticate Command
  • Communication using GSID
  • Master Write and Read
FAULT TESTS
  • Skip SSC (Sequence Start Condition)
  • Skip a bit in Command/Address/Data Frame
  • Send Invalid Command/Address/Data Frame
  • Send additional bit in Command/Address/Data Frame
  • Skip Parity Bit in Command/Address/Data Frame
  • Induce Parity Error in Command/Address/Data Frame
  • Send an incomplete Command/Address/Data Fram
  • Send an incomplete command sequence
  • Induce Bus Timeout with SDATA & SCLK pulled LOW
  • Induce IO contention fault
Parametric Coverage
Timing Parameters​
  • Fsclk SCL Clock Frequency
  • Tsclkoh SCLK High Period
  • Tsclkol SCLK Low Period
  • Td SDATA Valid Time
  • Tsdataz SDATA Drive Release Time
  • Ts SDATA Setup Time
  • Th SDATA Hold Time
  • TsscHigh SSC High Time
  • TsscLow SSC Low Time
  • TsclkOTR_Rise* SCLK Rise Time
  • TsclkOTR_Fall* SCLK Fall Time
  • TsdataOTR_Rise* SDATA Rise Time
  • TsdataOTR_Fall* SDATA Fall Time
  • Td-Target* TargetSDATA Valid Time
  • Ts-Target* Target SDATA Setup Time
  • Th-Target* Target SDATA Hold Time
  • Tglitch Pulse width of glitch to filter

* Can be measured using external Oscilloscope only

Electrical IO Parameters
  • VIL Low-Level Input Voltage
  • VIH High-Level Input Voltage
  • Vhys Schmitt Trigger Inputs Hysteresis
  • VOL* Output Low Level
  • VOH * Output High Level
Features
Features of SPMI Protocol Validation
  • ISO 9001 Certified Product
  • Simple, Flexible, Modular, and Light Bench Setup
  • Easy to use SPMI Protocol Exerciser and Debugger to perform various SPMI transactions with controllable timings/voltage levels
  • Protocol compliance testing with zero coding
  • Comprehensive reporting feature to report the test pass/fail reports
  • Generates Full Compliance reports in less than 2 hours
  • Reproduce failure cases in a few clicks
  • Easy to build and test custom device-specific tests
  • Automation Capability (DLLs/APIs) from external programming environment/automation frameworks like LabVIEW, C#, Python, TestStand, etc
  • Leverage Soliton’s experience in protocol validation and debugging
FAQ
What kind of engagement models are offered for SPMI Validation​?

We offer 2 engagement models. In the First mode, the user can purchase a license of the SPMI Validation Suite and do the validation in-house. In the second mode, the user can send us 3 DUT's, we will do the validation and send the test reports in 3 working days​.

How is this product different from existing Protocol Exercisers, Debugger or Analyzers?​

This product is mainly used for performing functional and electrical compliance validation of the SPMI devices (post-silicon validation) whereas the other existing protocol exercisers, debuggers, or analyzers are used for performing basic functional tests during the device bring up​

Can't I build a home-grown solution instead?​

While this is certainly an option, we expect that it will take a highly experienced automation engineer between 3-6 months to create a first version of a similar tool. To create a robust and flexible tool takes experience, and we have been improving this tool over the last 3 years since its release. We believe it is worth the cost to skip the learning curve and avail of our comprehensive report or validation suite.​

What else can I do with NI's PXI chassis/modules?​

The PXIe-657x module is a general-purpose programmable pattern generator and acquisition device with deep memory. It can be used for other protocol validation tools from us. Also, it can be programmed using LabVIEW or other programming languages to emulate any synchronous digital protocol. NI’s PXI chassis supports high bandwidth and synchronization-friendly control and reads back from a huge variety of digital, analog, and special-purpose modules in a compact form factor.​

What is the interposer board referenced in the system diagram?

The Protocol Validation Suite requires custom external circuitry for signal conditioning. Each purchase comes with a complimentary interposer board, which is a separate PCB designed and delivered by us.

Which oscilloscope models are supported?

The Protocol Validation Suite supports any NI scope by default. The tool has a flexible architecture that allows the support of other oscilloscope models. We can help you in building the oscilloscope plugin for one of your oscilloscopes​

What type of documentation and training will be available for each solution?​

User manuals, Getting started guides, and tutorial videos are available for each solution and can be easily accessed from within the product. Additionally, we will provide short live training sessions upon request. ​

Can the tool be used for out-of-the-box validation?

Yes, The tool comes with out of box test scripts which can be used for validation after entering the device-specific details​

Why was SPMI Master- SPMI Slave terms are renamed to SPMI Controller SPMI-Target?​

As a part of terminology replacement efforts, we have deprecated the Master-Slave terminologies and replaced them with Controller-Target terminologies in our documents. When the MIPI Organization finalizes a different terminology, we will be updated new terminology ​

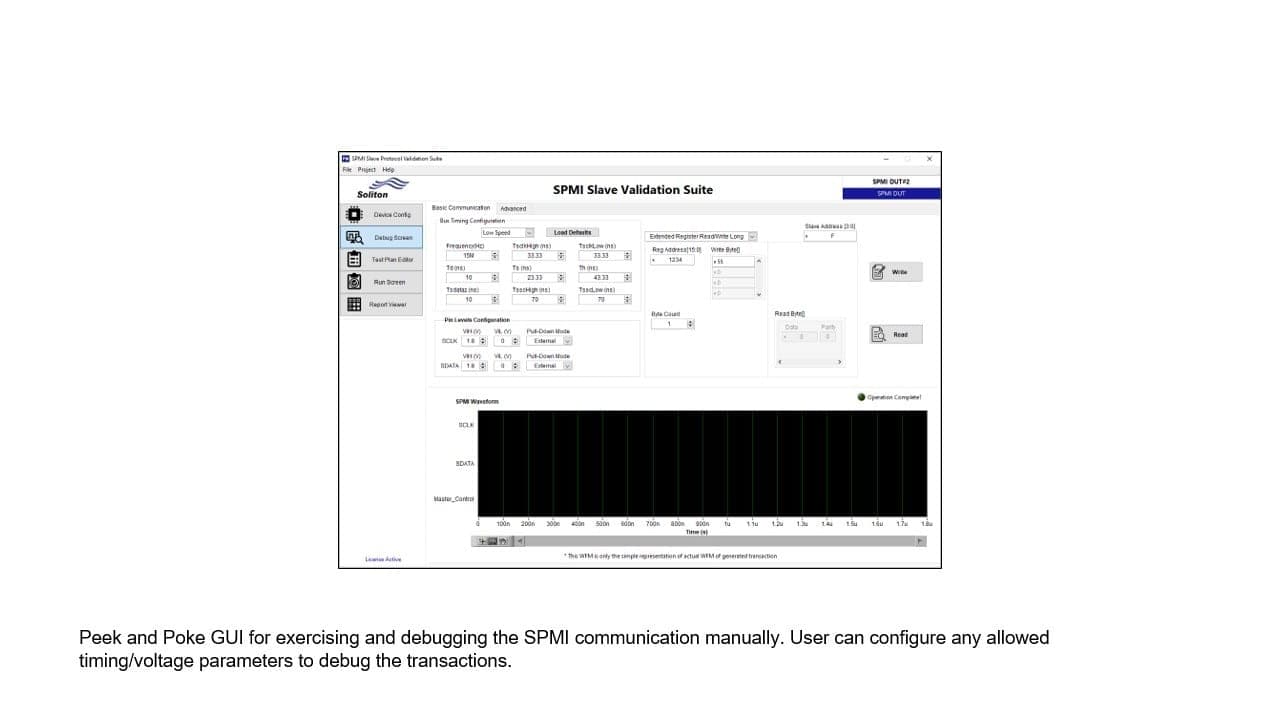

Peek and Poke GUI for exercise and debug the SPMI communication manually. User can configure any allowed timing/voltage parameters to debug the transactions. ​
Peek and Poke GUI for exercise and debug the SPMI communication manually. User can configure any allowed timing/voltage parameters to debug the transactions. ​
Automated Test Screen which is used to execute the test created and generate the compliance report​
Automated Test Screen which is used to execute the test created and generate the compliance report​
Report Viewer Screen to visualize and debug the test reports generated by the tool after executing the validation tests​
Report Viewer Screen to visualize and debug the test reports generated by the tool after executing the validation tests​
Peek and Poke GUI for exercise and debug the SPMI communication manually. User can configure any allowed timing/voltage parameters to debug the transactions. ​
Automated Test Screen which is used to execute the test created and generate the compliance report​
Report Viewer Screen to visualize and debug the test reports generated by the tool after executing the validation tests​

Technical Documentation

Soliton’s SPMI Validation Suite is an off the shelf validation tool using NI’s PXI platform, which helps to validate the devices’ compliance with the timing and electrical specifications of the MIPI SPMI protocol. It contains the below components.

  • NI PXIe 657x – Digital Pattern Generation Card with the PXIe Chassis setup
  • Soliton PVS Interposer Board
  • Oscilloscope – For performing signal timing and voltage measurements
  • Soliton SPMI Validation Suite Software compatible with Windows OS (Win 10)
For more details, download the datasheet
Download Datasheet - SPMI Protocol Validation Suite Specifications

Hardware

Soliton’s SPMI Validation suite is based on the NI – PXI Platform and the NI part configuration lists the hardware required to perform the validation

The solution also needs a custom Interposer Board for signal conditioning purposes.

The DUT can be connected through the Berg Connector​
The DUT can be connected through the Berg Connector​

Support & Training

For any queries, contact us at [email protected]. We will respond within 1 Business day.



TYPICAL USER BASE FOR I3C VALIDATION SUITE



  • Design Engineers, Test Engineers, Post Silicon Validation Engineers, Engineering Managers, Validation Managers, Lab Managers, etc from the Semiconductor Industry
  • Post Silicon validation of Chips with System Power Management Interface (SPMI)
  • Semiconductor Chip Manufacturers making SPMI Devices
  • Validation of Protocol Implementation Conformance Statement (PICS) for SPMI devices
