Enhancing MIPI I3C® Compliance Testing with PVS

A leading semiconductor firm encountered a significant testing challenge while implementing MIPI I3C® protocol In-Band Interrupts (IBI) every 50 milliseconds. Explore how Soliton’s PVS emerged as the instrumental solution, ensuring seamless protocol compliance testing with out-of-the-box functionalities and robust custom test creation capabilities.

A prominent semiconductor firm was developing a sensor product for a device. This sensor would send data to the controller continuously, every 50 milliseconds (ms).  For this to play out effectively, the customer leveraged the MIPI I3C® protocol’s “In-Band Interrupts”, which helped the sensor interrupt the controller and send the data to it every 50ms.

Hurdles

The Hurdle Faced by the Customer

The challenge for the customer is that they needed a tool which can emulate the controller and accurately test the sensors for protocol compliance. They wanted the tool to support handling of In-Band Interrupts, read data from the IBI requests at a 50ms rate, compare the received data against the pre-configured limits and validate the results.

Soliton in the Picture

Soliton's Protocol Validation Suite (PVS) stood out as the tool of choice in the customer's market exploration. Following a thorough evaluation, the tool provided the anticipated out-of-box test coverage and featured custom test creation capabilities. This streamlined the validation process, ensuring comprehensive coverage of custom test cases without the need for additional effort.

Soliton in Picture

Highlighted Offerings of the Tool

On the whole, Soliton’s PVS tool provides an out-of-box testing experience with inbuilt tests to achieve >90% protocol compliance test results, something that the customer was looking for.  It also contained a detailed report-generation feature that surpassed customers’ expectations, which helped them create and analyze comprehensive and extensive test reports.

More specifically, PVS also helped the customer regarding their custom use cases with:



  • Customizable MIPI I3C® Protocol Commands

 Soliton’s Protocol Validation Suite (PVS) has a flexible software interface that allows users to customize MIPI I3C® protocol commands and test In-Band Interrupt (IBI) responses every 50ms effortlessly, without any programming.

  • High-Performance DPI Hardware

PVS leverages a robust DPI hardware foundation, enabling it to wait and swiftly capture IBI requests without much programming.

  • Readily Available Solutions

Serving as a convenient solution, the PVS tool eliminates the need for creating additional firmware layers, significantly saving time and expediting the entire validation process without any additional customization.

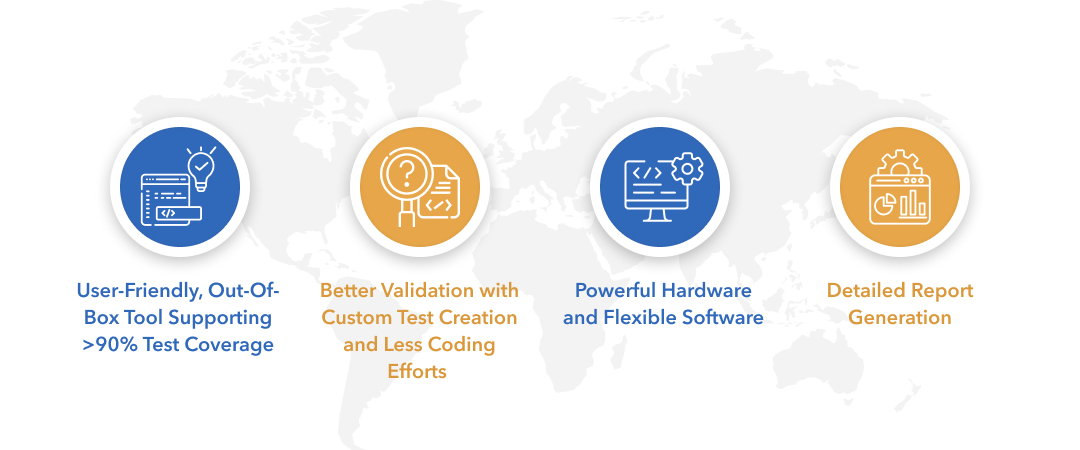

Pivotal Attributes of Soliton’s PVS

Pivotal Attributes of Soliton’s PVS

With Soliton’s Protocol Validation Solutions, the customer can perform comprehensive validation, analyze the results, and generate extensive test reports with relatively minimal coding. With customizable protocol commands and a robust hardware foundation, this readily available solution helped them save time and expedite the entire validation process.

Would you like to get more details or demo on how Soliton solved this challenges?
